The product
Product Details

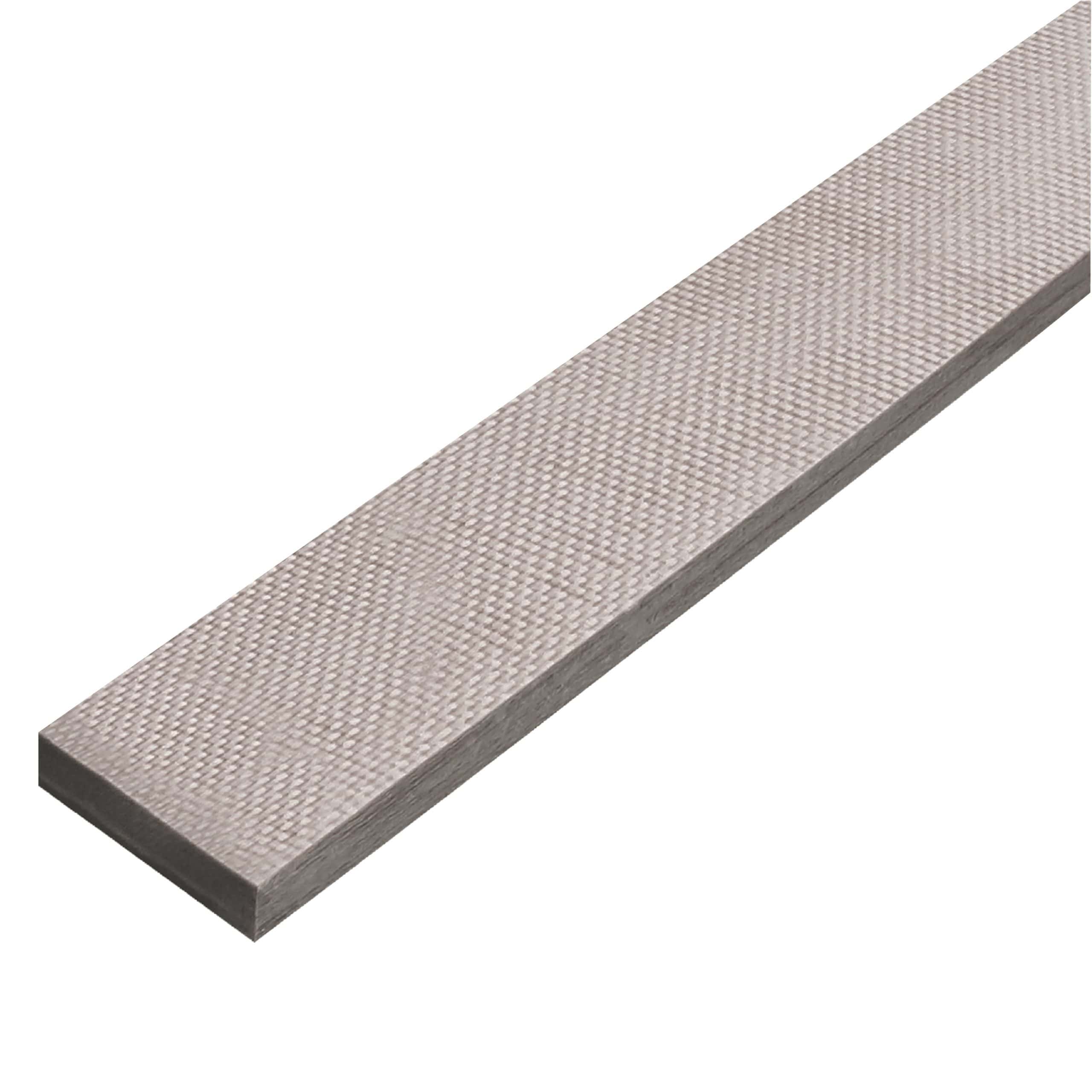

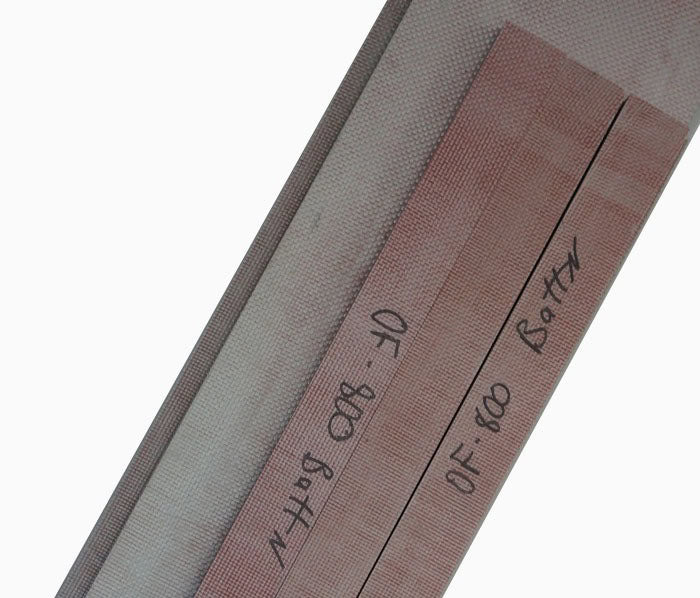

Backing strips in the same bullet resistant laminate as the fiberglass wall panels, 4 inches wide. A seam between two sheets is a gap in the protection unless it is backed: one strip centred behind every joint keeps the seam rated to the same level as the panel either side of it.
Strips come in all eight UL 752 levels, so each one matches the panel it backs, and in 8′, 9′ and 10′ lengths. Offset the drywall or millwork seams from the panel seams.
Configuration & performance
Key Features
- Same laminate as the fiberglass wall panels
- 4″ wide, the minimum joint backing in CSI 10-2641
- 8′, 9′ and 10′ lengths
- UL 752 Levels 1–8, matched to the panel
- Thickness follows the level: 1/4″ to 1-3/8″
- Centred behind each joint between sheets
- Keeps the joint rated to the same level as the panel
In our online store
Open the store page
Bullet resistant
Ballistic Panels
Bullet Resistant Batten Strips (4" Wide)
Price range: $40.00 through $230.00
Available to orderShipping $45.00 per item within the contiguous US. Applicable tax calculated at checkout.
